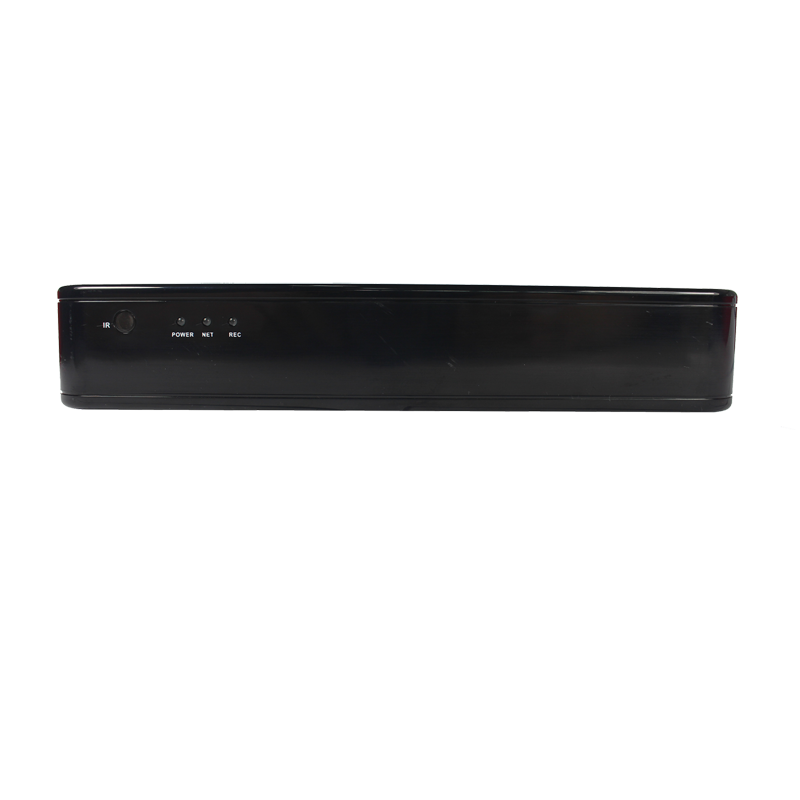

H.265 9CH 1080P NVR
1.NVR:9CH 1080P@25fps recording, 2CH 1080P playback；
2. NVR:8CH 960P@25fps recording, 4CH 960P playback.
| H.265 9CH 1080P NVR |
| Model | TB-NVR1208P (8CH) |
| IP video input: | 9ch 1080P |
| HDMI/VGA output: | 1 HDMI, 1 VGA |
| Recording Resolution: | 1080P |
| Chipset | HI3520D |
| Frame Rate: | Main stream: 25 fps (P) / 30 fps (N) |
| | Sub-stream: 25 fps (P) / 30 fps (N) |
| Audio: | N/A |
| Incoming bandwidth: | 80Mbps |
| Remote connection: | Max. 16 |
| Synchronous Playback: | 4-ch |
| HDD | 1 HDD |
| Capacity: | Up to 6TB for each disk |
| Network Interface: | 1RJ-45 10/100/1000Mbps |
| USB Interface: | 2 |
| Alarm: | N/A |
| RS485: | N/A |
| Power Supply: | 12V DC |
| Consumption | ≤15W |
| (without hard disk): |
| Working Temperature: | -10 ºC ~ +50 ºC |
| Working Humidity: | 10%~95%RH |
