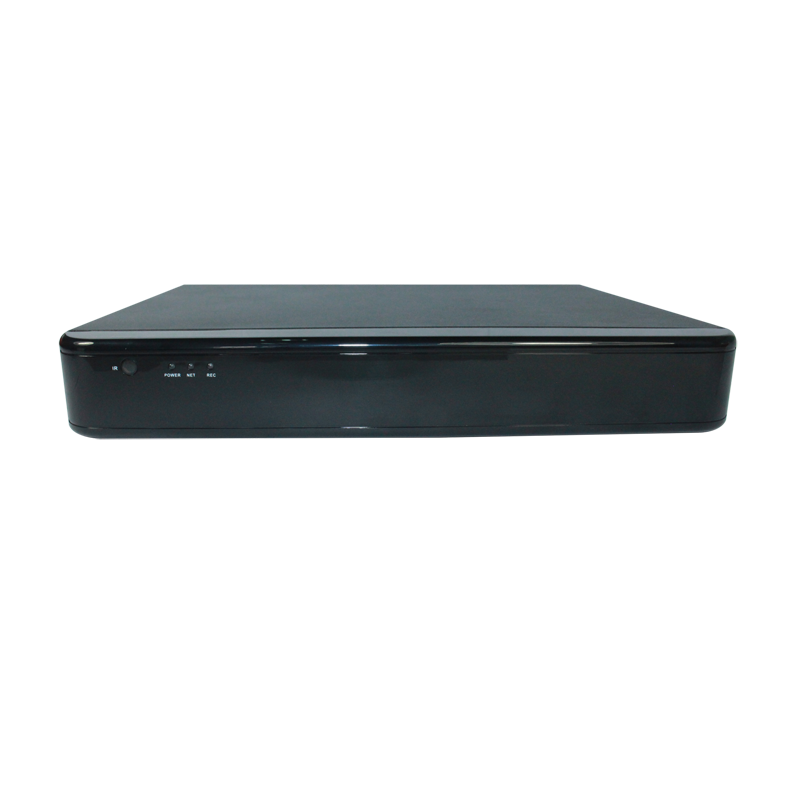

H.265 16CH 1080P NVR
1.NVR:16CH 1080P@25fps recording, 4CH 1080P playback；
2.NVR:6CH 1080P@25fps recording, 6CH 1080P playback；
3.NVR:16CH 720P@25fps recording, 16CH 720P playback；
4.NVR:16CH 3.0MP@25fps recording, 4CH 3.0MP playback；
5.NVR:8CH 5.0MP@25fps recording,2CH 5.0MP playback；
| H.265 16CH 1080P NVR |
| Model | TB-NVR1208P (16CH) |
| IP video input: | 16ch 1080P |
| HDMI/VGA output: | 1 HDMI, 1 VGA |
| Recording Resolution: | 1080P |
| Chipset | HI3535 |
| Frame Rate: | Main stream: 25 fps (P) / 30 fps (N) |
| | Sub-stream: 25 fps (P) / 30 fps (N) |
| Audio: | N/A |
| Incoming bandwidth: | 80Mbps |
| Remote connection: | Max. 16 |
| Synchronous Playback: | 4-ch |
| SATA: | 2 SATA interfaces for 2 HDD |
| Capacity: | Up to 6TB for each disk |
| Network Interface: | 1RJ-45 10/100/1000Mbps |
| USB Interface: | 2 |
| Alarm: | N/A |
| RS485: | N/A |
| Power Supply: | 12V DC |
| Consumption | ≤15W |
| (without hard disk): |
| Working Temperature: | -10 ºC ~ +50 ºC |
| Working Humidity: | 10%~95%RH
|
